WHAT IS PORT HOPPER FOR?
Port Terminal Hopper By Functions
- ECOLOGICAL HOPPER
- MOBILE HOPPER
- TOWED MOVABLE HOPPER
- RAIL TYPE HOPPER
- FIXED HOPPER

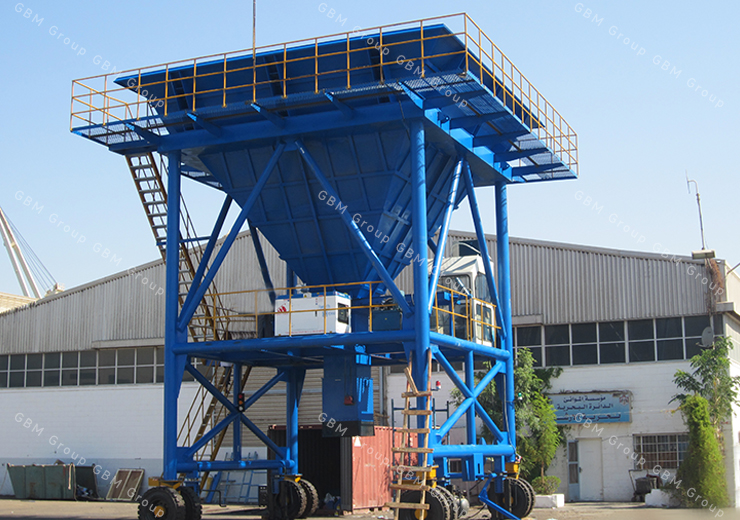

Movable hopper moving on track, it used for loading and unloading cement clinker from ships.

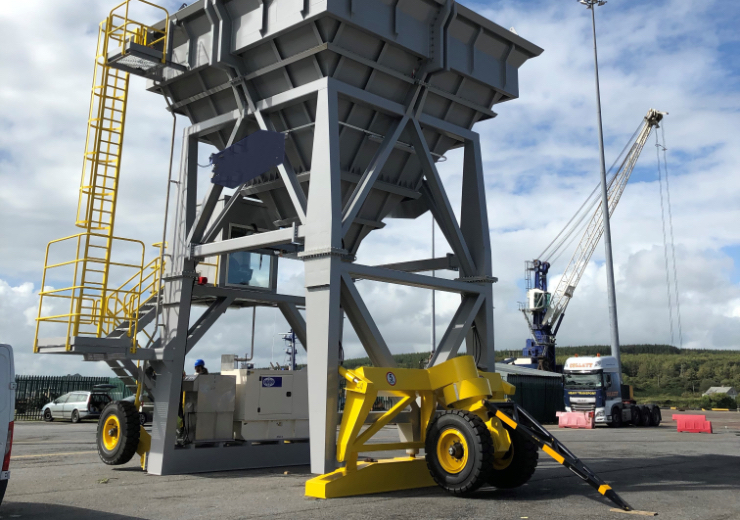

The towed movable hopper moved by external drag force,such as truck,loader, forklift etc.

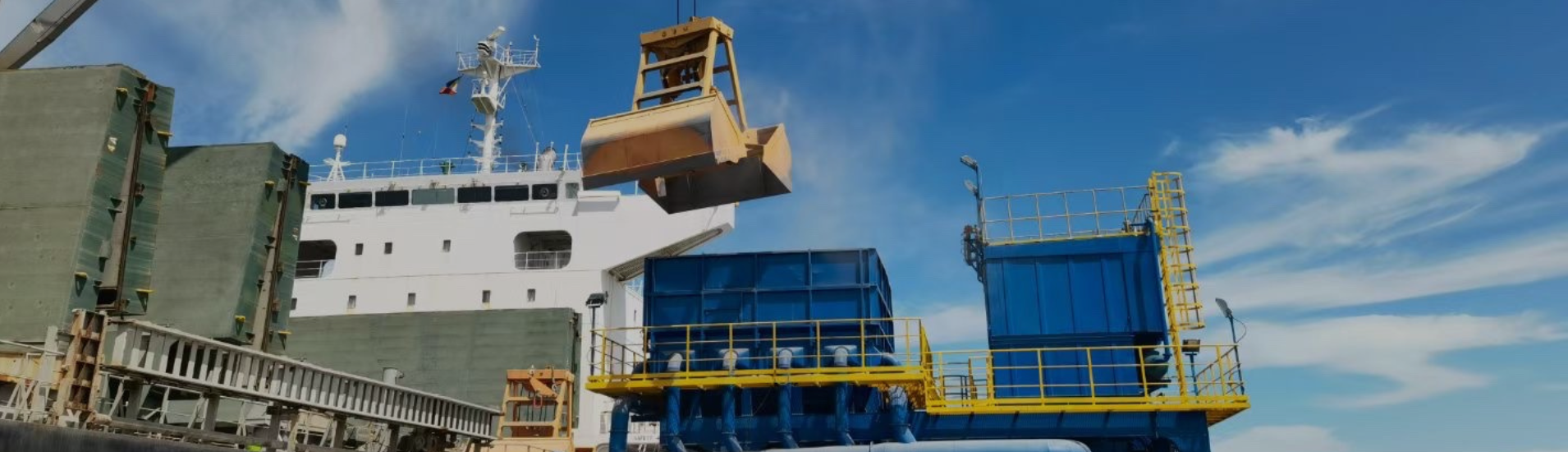

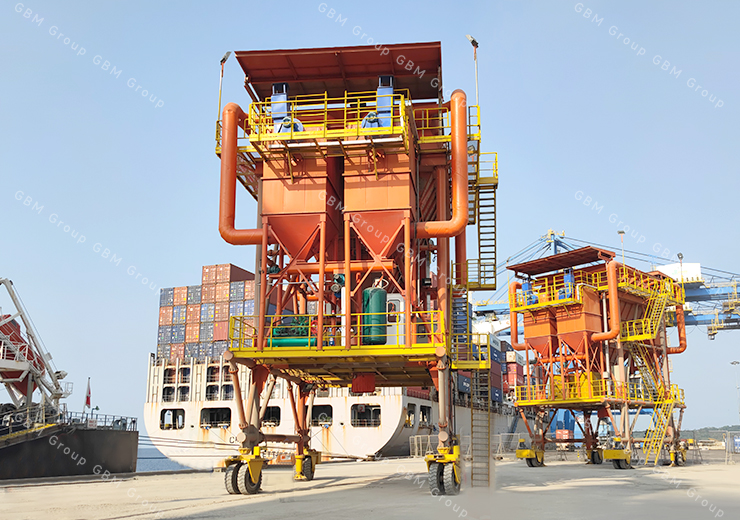

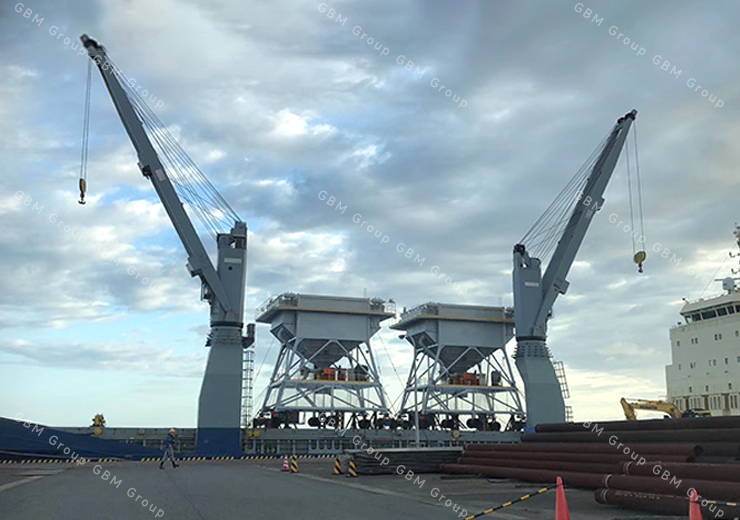

Mobile hopper is very flexible to be used on non-dedicated quays and moved off the area when not in use.
This is very simple hopper struture and walking model by external force dragging

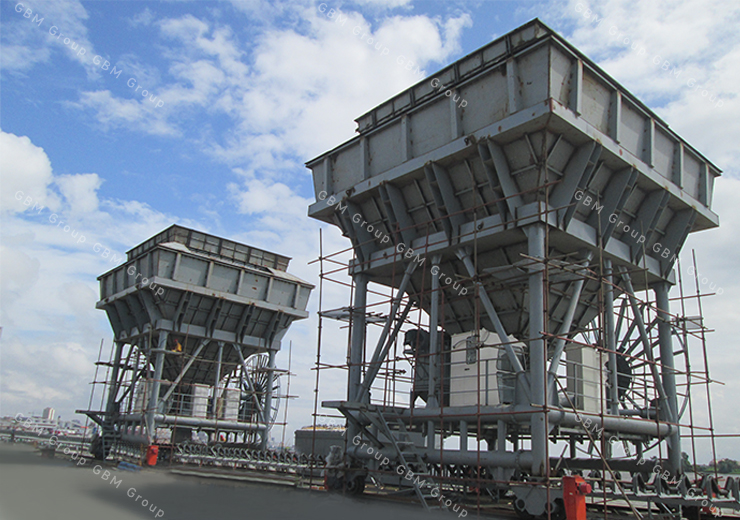

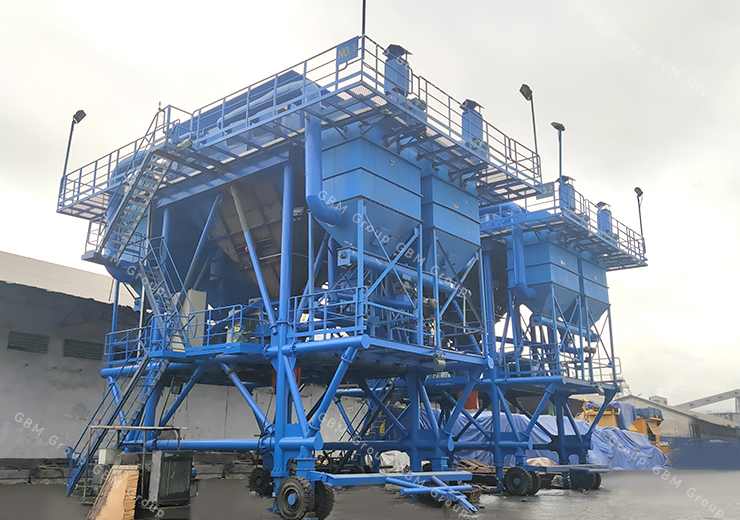

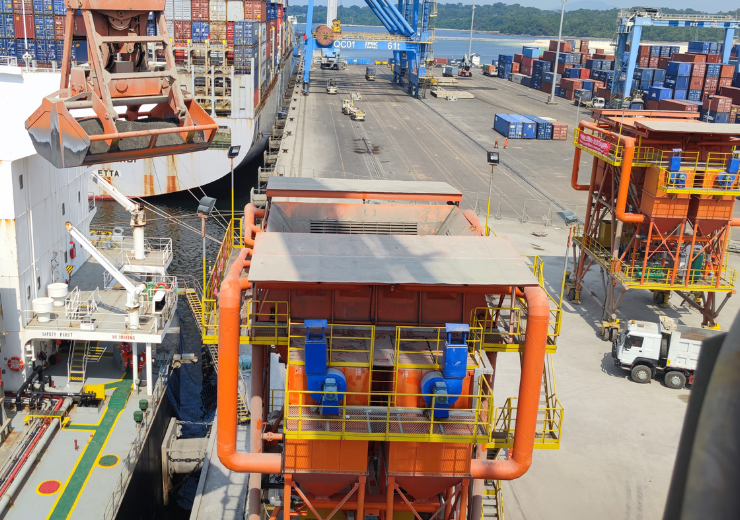

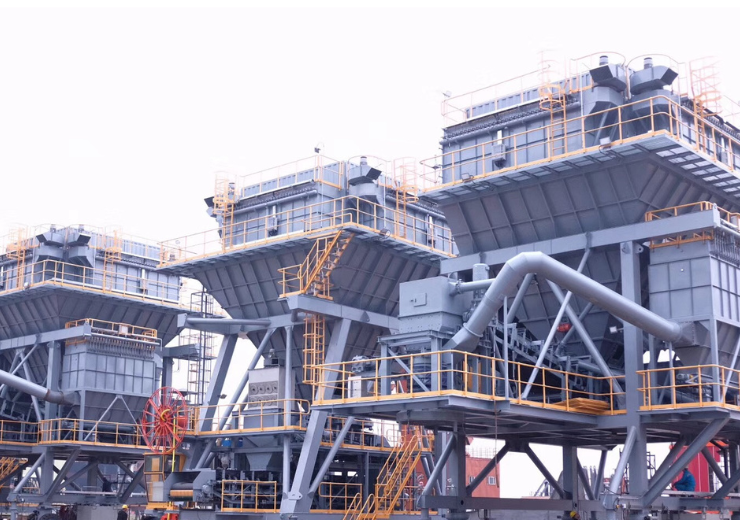

Eco-Hopper with dust collection,it guarantee a practically non-existent dust emission during handling.
The bennifit of eco hopper is that minimises dust escaping,it is for environment requirement.

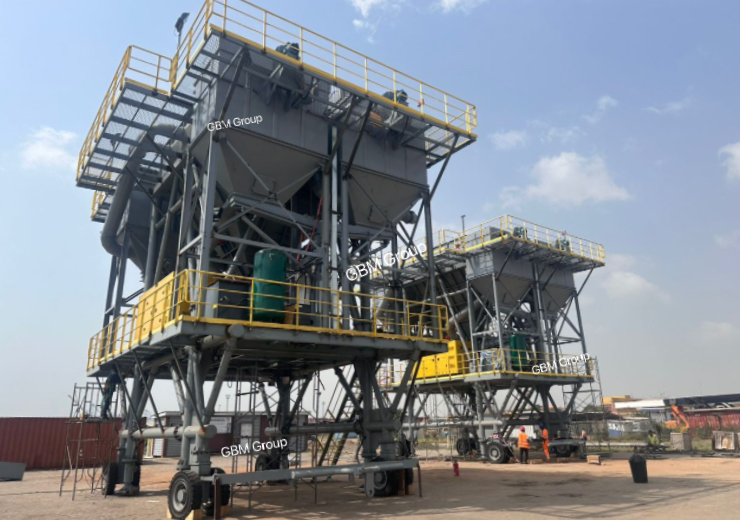

The bottom of mobile hopper equip with self driving device, it drive the entire hopper stable driving .

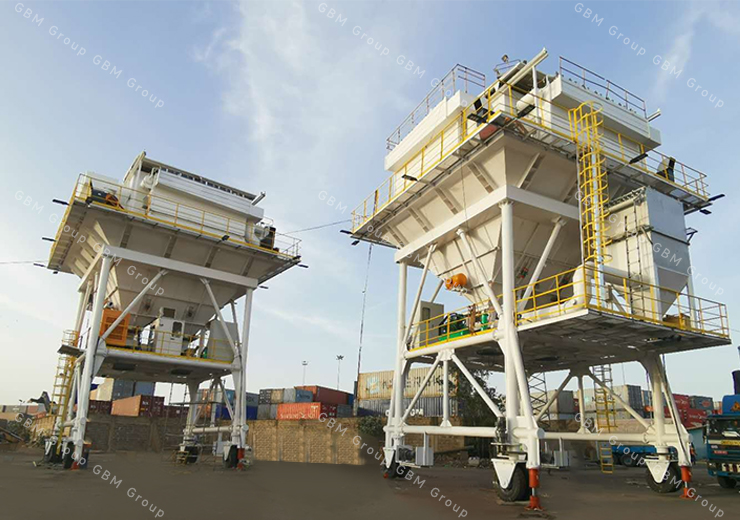

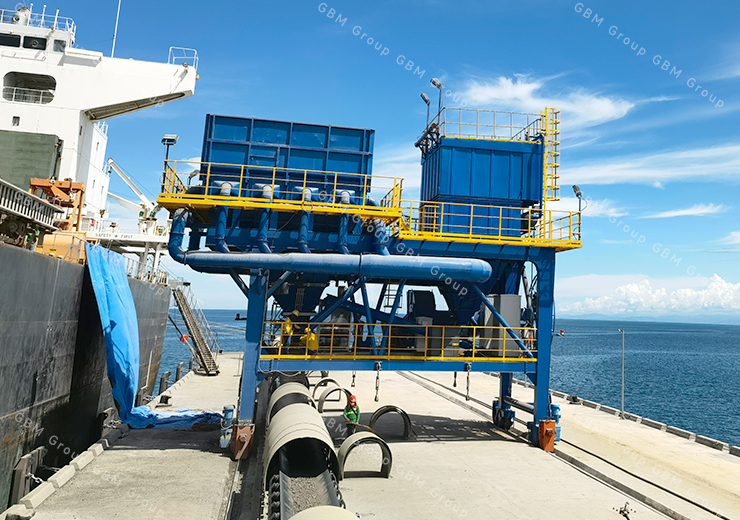

For cement and clinker material,we use the dust-collector and telescopic chute for dust-proof design.

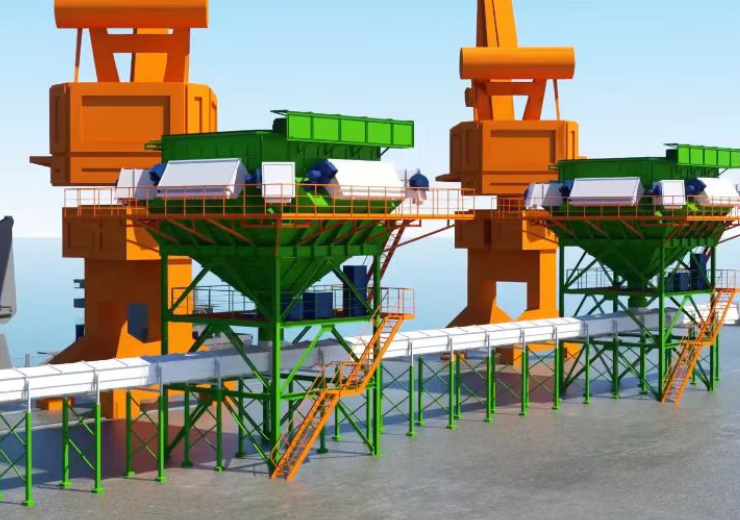

Rail mounted hopper capacity reach 1200t/h, unloading into belt conveyor,then transport to warehouse.
The movable hopper uses solid rubber tires，the advantage is with a long service life.

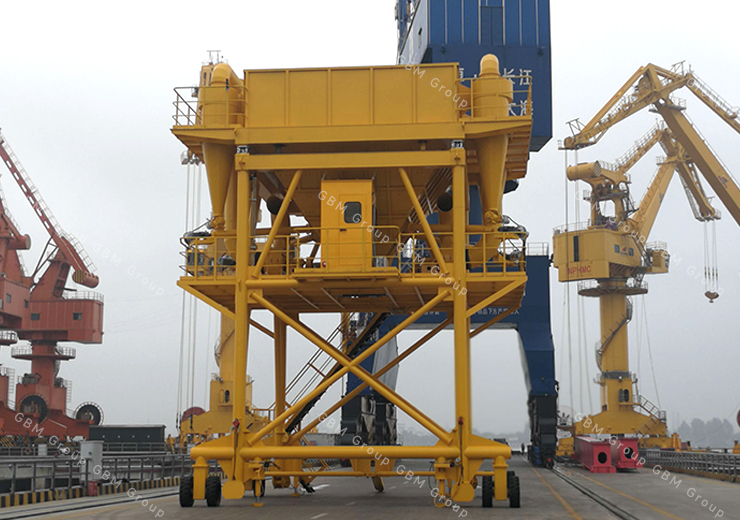

Cyclone hopper is type of eco hopper,it uses centrifugal force to separate particles from the airflow.
Why Choose GBM As Your Mobile Hopper Supplier?
The high reliability is crucial for terminal,it can bring growth and profitability by quickly handling ship,we deeply understand your points and could provide you with value-added services:
- We have practical experience with different materials, and ready-made drawing databases
- High strength steel plate is good for the harsh conditions,but good price
- Our eco hopper follows the same design principles, can standardize modules, and shorter delivery time
- We have own installation team oversea for hopper installation and guidance
- We have various patents for the port hopper,strong and free technical support
- We have many global examples could visit for first cooperation
Feature of GBM Port Terminal Hopper
We are available in many design,size,option according to unique request.
- Effective volume of port eco hopper: 20-50-100 cubic meters
- Suitable materials: cement, clinker, limestone, iron ore, coal, copper concentrate, biomass wood chips, nickel ore
- Dust-proof type structure: filter bag dust removal, spray dust removal, cyclone dust removal
- Optional functions: flexible baffle, dust seal, dust filter, air compressor, telescopic chute
- Multiple discharge options: to conveyor, truck, or cement tank truck
- Multiple walking modes : track movement, fixed, tire type, or traction type drag
- Efficiency: According to requested vessel unloading time
If you want to make a new hopper design,just send us your inquiry even a idea,we will make it perfect for you.
How GBM Eco Hoper Packaging Safety?
The end of production does not mean the end of our task, as our goal is to safely transport and install the goods to your hands perfectly.We GBM established independent logistics, installation, electrical, training, and after-sales departments outside of sales and production department. We have professional shipping personnel for serve customers with the ultimate service,we could flexible deal with you FOB price ,CIF price or DDP price.

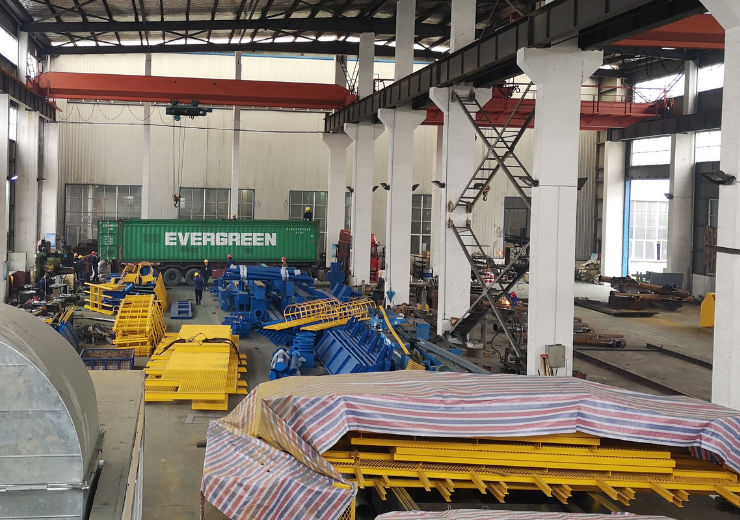

You can see we dissamble hopper into small parts and able deliver them in the container for convenient transportation, we will bundle each port hopper small item together, use hard binding materials and wooden pallets to fix the equipment, keep a record of the shipment list, and inventory at the destination port. We also have ability and option to arrange whole set hopper shippment ,it is totally ajust by your prefer.

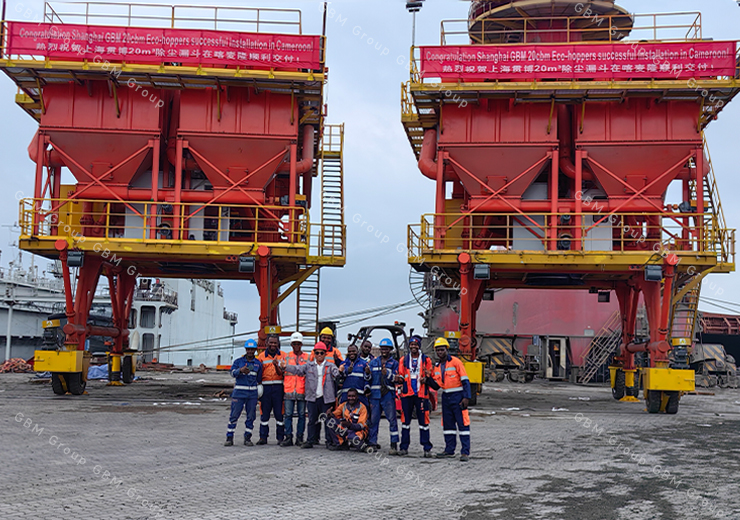

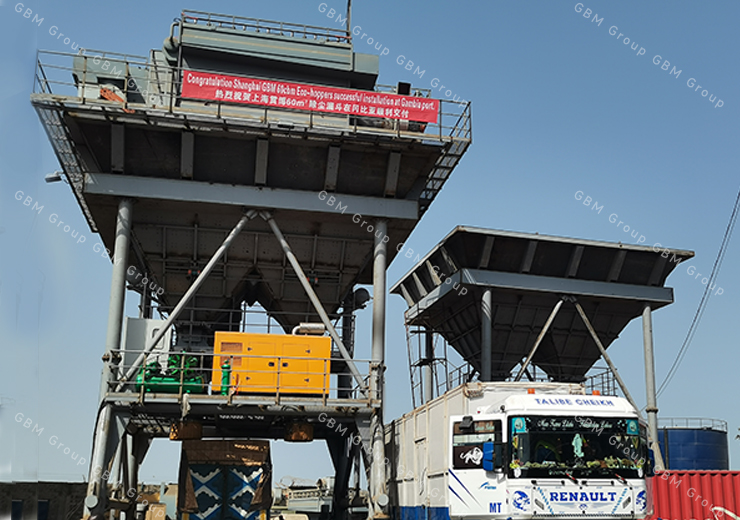

Ecological Hopper Global Cases
Terminal Hopper Application
Port hopper play an important role in port operations, mainly used for unloading and loading various bulk materials. These bulk materials include but are not limited to granular, and irregularly shaped materials such as coke, pig iron blocks, scrap steel, coal, cement, lime, and grain etc.

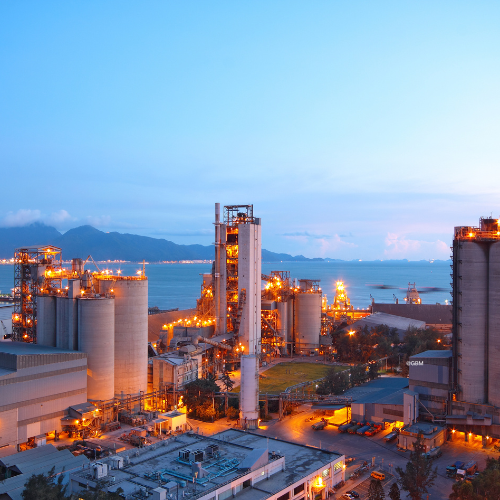

Eco hopepr is the first option for cement plants because the main materials handle are cement and clinker, which come with dusty. Installing a dust collector on the eco hopper can reduce dust pollution and achieve a dust removal rate of 99%.Whether you want,GBM will be your trusted Chinese supplier.
1.What is the Port Hopper volume do you need?（ ） m3
2.What is the Terminal Hopper efficienc ? Efficiency（ ）t/h
3.What is the Materials will be handle by the eco hopper?
Particle size（ ）mm
Materials density（ ）t/m3
Materials variety:
4.Will the mobile hopper unloading to truck or belt conveyor?
5.For the feeding grab to the mobile hopper,what is the grab volume?
6.Do you need Mobile type hopper ?Will hopper move on the levele surface by wheels or rail?
7.For mobile hopper walking type,do you ned external force drag walking or operation control walking?
The principle of eco hopper is mainly to use the centrifugal force generated by the rotating dusty gas to separate dust from the airflow. Specifically, the dusty gas is introduced into the outer shell and exhaust pipe of the dust collector through the inlet, forming a rotating downward outer vortex. The dust suspended in the outer vortex moves towards the wall of the dust collector under the action of centrifugal force, and then rotates to the lower part of the dust collector with the outer vortex, and is discharged through the dust discharge hole. The purified gas forms an upward internal vortex and is discharged through the exhaust pipe. This dust removal method belongs to a type of dry gas-solid separation device, which is suitable for efficiently removing dust from the air and does not require the use of any chemical agents, making it more environmentally friendly
Due to the highly customized nature of port hoppers with different structural forms, the required production cycle also different,our average production cycle for mobile hopper is 80-120 days
