Belt Conveyor System
The main advantage of belt conveyor system:
- High productivity and long transportation distance
- Simple structure and lightweight
- High work safety and easy to use
- Continuous and uniform conveying with low power consumption
- Easy maintenance and upkeep
- Easy to achieve automatic control and long transportation distance
- Large transportation capacity and low work resistance
Your Best Belt Conveyor Expert In China
GBM® belt conveyor system can be easily integrated into automation systems, improving the automation level of production.
In addition, belt conveyor systems have the advantages of high transportation capacity, low working resistance, easy installation, low power consumption, and minimal wear, making them widely used in industries such as mining, metallurgy, and coal.
Technical Data
- Tab1
| Belt Width | Up to 2.4m（Customized length） |
| Belt Length | >3 km（Customized length） |
| Capacity | >8,000 m³/h（Customized length） |
| Belt speed | Up to 6.0m/s（Customized length） |
| Max Angle of Inclination | Maximum 250 |
| Drive Type | Motorized pulley |
| Geared motor unit | |
| Motor+fluid coupling+gear box | |
| Belt Options | Rubber belt |
| PVC belt | |
| PU belt | |
| Nylon belt | |
| Metal mesh belt | |
| Tension Device | Below 100m-screw type tail tension unit Above 100m -gravity tension unit or car type tension unit |
| Protection Switches | Blockage sensor |
| Belt Sway Switches | |
| Pull-cord switch | |
| Speed switch | |
| Construction Materials | Conveyor case and internals -stainless or coated mild steel|Conveyor support structure -galvanised mild steel |
| Conveyed Materials | Wet or dry bulky materials in the form of crumbs,grains,pellets,shreds,dust, powder,flake,or crushed products of bio-matter,sludge and aggregate. |
Application Of Belt Conveyor System
CEMENT PRODUCTION
GBM® belt conveyor system in cement plants, belt conveyors are mainly used to transport various raw materials (such as limestone, clay, iron ore, etc.), fuels (such as coal), and finished cement materials. Belt conveyor system can efficiently transport materials from one location to another, achieving continuity in the production process.
GBM® belt conveyor system, there is no relative motion between the material and the conveyor belt, which can avoid damage to the conveyed material and ensure the quality and integrity of the material.
CHEMICAL INDUSTRY
GBM® belt conveyor system is mainly used for transporting various materials such as chemical raw materials, intermediate products, and finished products.GBM® belt conveyor system can quickly and efficiently transfer materials from one production process to another, ensuring the continuity of chemical production.
Similar to the GBM® belt conveyor in cement plants, it usually includes conveyor belts, drive devices, rollers, tensioning devices, and frames.
PORT AND TERMINAL

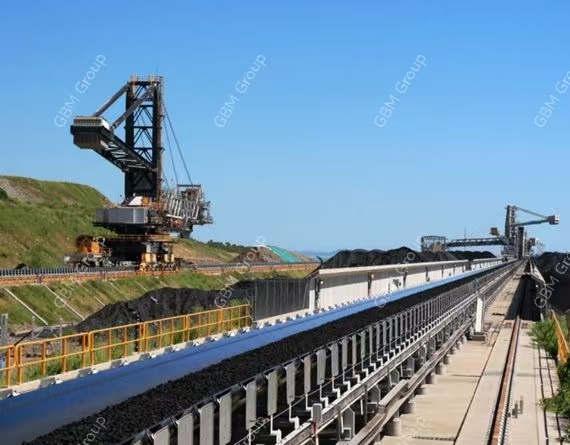

GBM® belt conveyor system at port play a crucial role in the loading, unloading, and transportation of goods at ports, mainly used to quickly and efficiently transport goods from ships, yards, warehouses, and other locations. It can transport various types of goods, such as coal, ore, grain, containers, etc.
GBM® belt conveyor system with high reliability, able to operate stably in harsh port environments and reduce the occurrence of failures.
MINERAL DRESSING
GBM® belt conveyor system with large conveying capacity, capable of handling large amounts of ore, coal and other materials, with an hourly conveying capacity of thousands of tons or even higher, meeting the needs of large-scale production in mines.

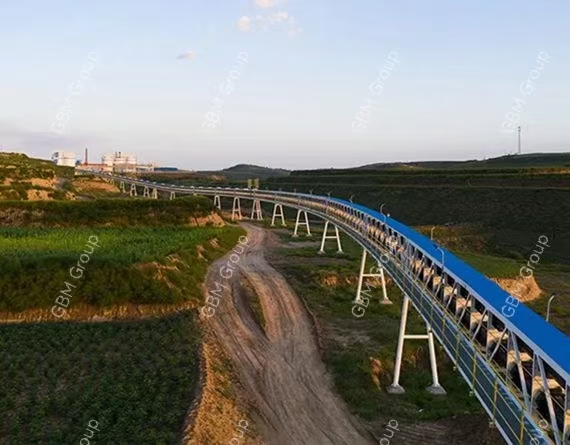

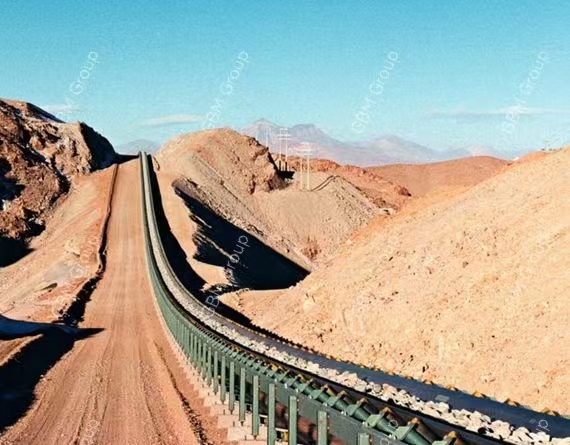

GBM® belt conveyor system with long conveying distance can be designed into longer conveying routes according to the terrain and production layout of the mine, achieving long-distance transportation of materials between different operating areas, reducing intermediate transfer links, and improving production efficiency.
Why Choose GBM As Your Partner?
View More About Belt Conveyor System
- 3D Gallery
- Component Details
Conveyor Roller
Conveyor Cover
Conveyor Idler
Conveyor Head Motor
Conveyor Base
GBM ®Belt Conveyor Global Case
-
Equipment : Fixed Belt Conveyor
Material: Iron ore
Capacity: 4000 t/h
-
Equipment : Fixed Belt Conveyor
Material: Sand,Rocks
Capacity: 6000 t/h
-
Equipment : Fixed Belt Conveyor
Material: Rocks
Capacity: 5800 t/h
-
Equipment : Fixed Belt Conveyor
Material: Nickel Ore
Capacity: 6800 t/h
-
Equipment : Fixed Belt Conveyor
Material:Iron Ore
Capacity: 6800 t/h
