Electrical Hydraulic Container Spreader
Major Features of electrical hydraulic telescopic container spreader :
- Suitable for mobile harbour cranes
- 360° rotation can be achieved with GBM rotator
- With ±1,200 mm gravity point adjustment function
- Equipped with 6 pieces of versatile side-flipper
- Long service life of hydraulic system
- Telescopic from 20ft-40ft-45ft
- Compatible with different sizes of ISO containers
Professional Container Lifting Spreader Supplier

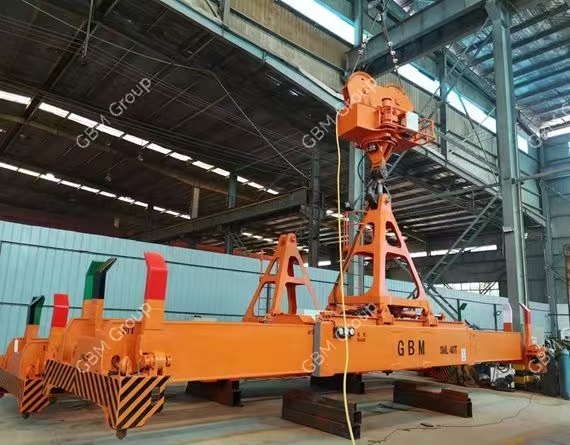

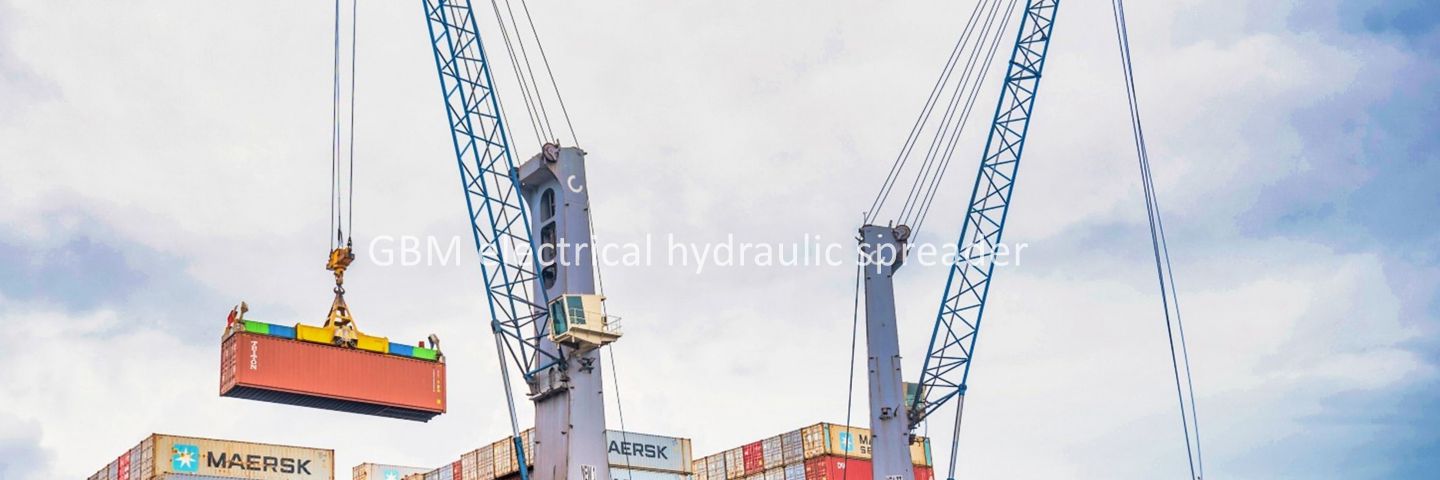

GBM® electrical hydraulic telescopic spreader is designed to use in Mobile Harbour crane and marine deck crane.
This hydraulic spreader is equipped with a tower for centre of gravity adjustment and 6 pieces of hydraulic flippers.Its telescopic function allows it to lift 20FT, 40FT,45FT and various other sizes of ISO standard containers.Used in conjunction with GBM rotator, it can also achieve 360 ° rotation.Vertical adjustment (allowing you to retrieve containers from a tilted ship), various position stops, and far-reaching diagnostic systems are all possible.The hydraulic system produced by GBM® has reliable stability and a long service life.
Technical Data
| Main technical parameters | |||
| REM Level: | M6 | Rated load: | ≤40tons |
| Dead weight | About 11 tons | Hanger rated load: | 4×10 tons |
| Allow bias eccentricity | ±10% | Ambient temperature: | 0°～+40° |
| Resale mode: | ISO floating resale, hydraulic cylinder drive | Lock and unlock(90°): | ～1s |
| Telescopic mode: | Hydraulic drive | Telescopic time (20ft~40ft): | ～30s |
| Rotating mode: | Electrical motor driven | Swing speed: | 1.5RPM |
| Load eccentricity device: | hydraulic cylinder drive | Gravity point adjustment(±1200mm) | ～35s |
| Guide mechanism: | Hydraulic motor drive(6 sets) | Protection level: | IP55 |
| Power supply voltage / frequency | 380V/50HZ | Control voltage: | 48V |
| Total power: | 7.5KW | ||
GBM Hydraulic Container Spreader

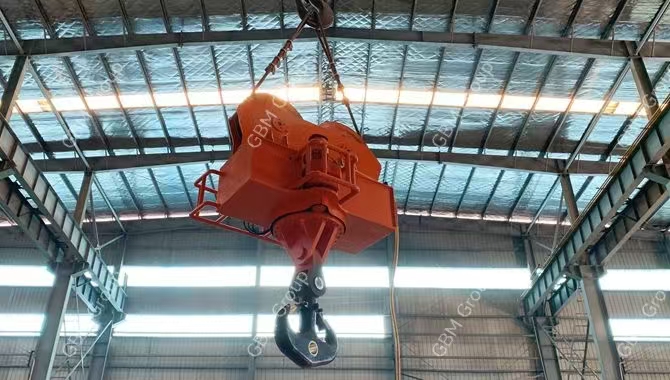

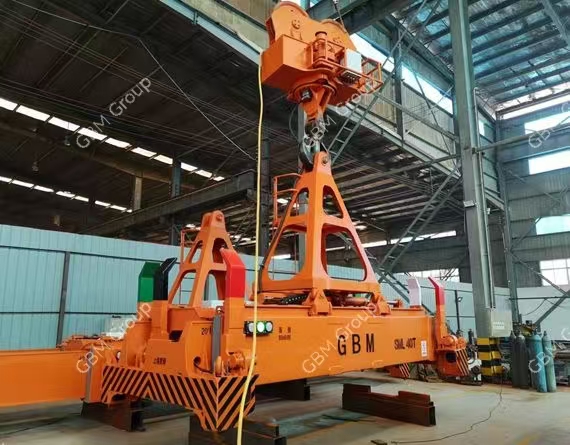

Rotator For Mobile Harbour Crane
GBM ® rotator is the main optional component of GBM ® hydraulic container spreader, mainly used to connect GBM ® hydraulic container spreader with the port mobile cranes. It has the characteristics of flexibility, easy operation, and low self weight.
GBM ® rotator is driven by a hydraulic motor to drive the slewing support, which can achieve ± 360 ° full rotation.
GBM ® rotator can adjust the container to a horizontal position during operation.
GBM ® rotator is easy to connect or disconnect with the GBM ® hydraulic container spreader.

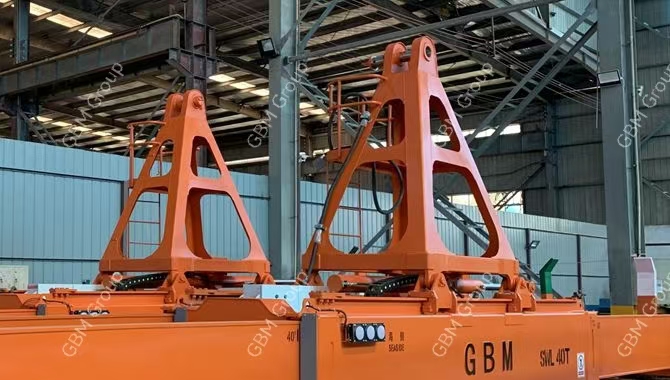

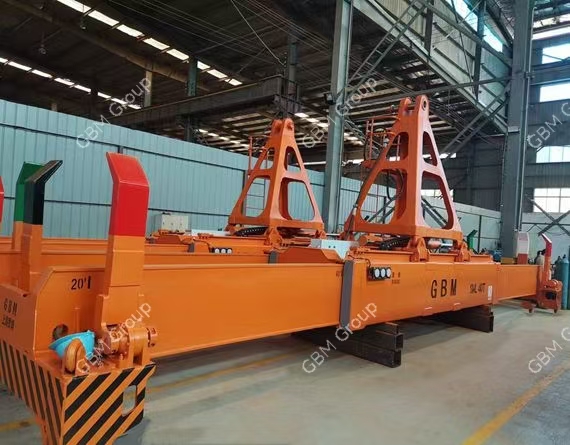

Tower On GBM Hydraulic Spreader
With the tower on the beam of GBM ® hydraulic container spreader,it can achieve ±1,200 mm gravity point adjustment function.
The tower base can also be used in conjunction with ladders and platforms to provide a safe working space for maintenance personnel.
Staff can stand on the platform and plug in and out the plugs connecting the crane and container lifting equipment.

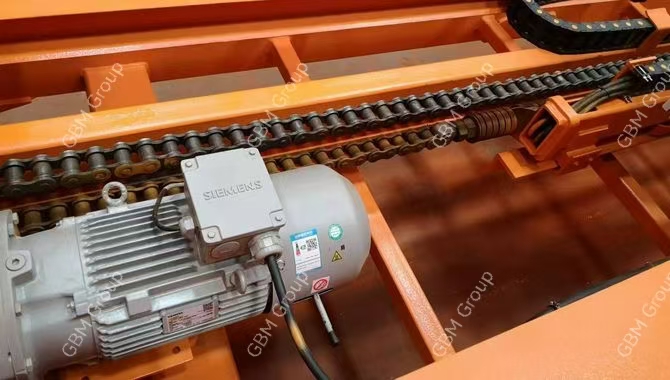

Famous Brand Motor
GBM ® electrical hydraulic container spreader is equipped with international high-end brand motors, such as Siemens, ABB and other brands.
Equipped with all high-performance electrical components, low failure rate, long service life, and aesthetically pleasing and reasonable design.

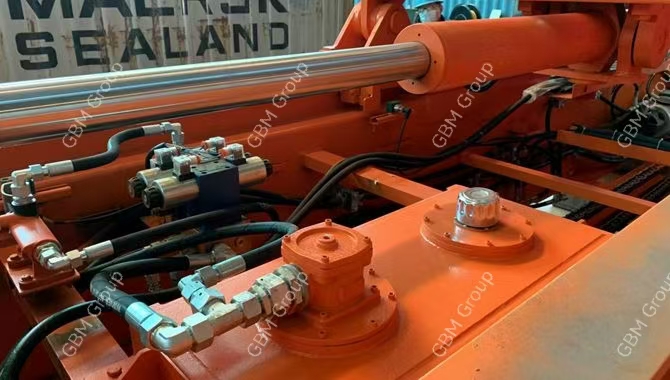

Hydraulic System
GBM ® hydraulic container spreader’s telescopic and locking/unlocking functins are driven by the hydraulic system.
GBM ® hydraulic container spreader is equipped with GBM’s self-produced hydraulic system, with imported high-end brands used for oil pumps and main valve components to ensure the stability of the hydraulic system.
The layout of hydraulic pipelines is beautiful and reasonable.

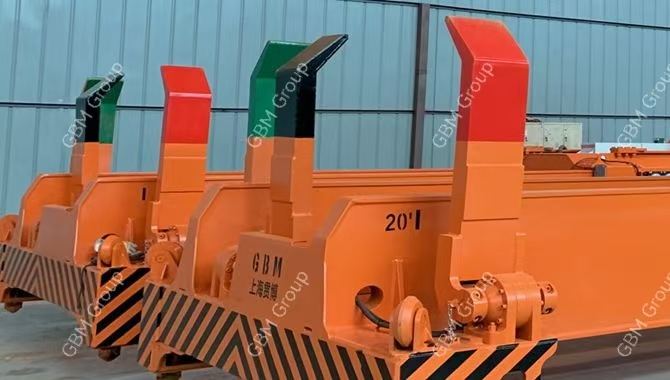

Powerful Flippers
The Flipper of GBM ® hydraulic container spreader is made of high-strength steel and driven by hydraulic cylinders.
The powerful flipper helps the operator to quickly align the spreader with the container, greatly improving the efficiency of container loading/unloading operations within the same operating time.
As a safety upgrade, the filpper of GBM ® hydraulic container spreader is equipped with a flipper tie, which fixes the flipper to the structural beam of the GBM ® hydraulic container spreader, better ensuring the safety of operation.
Why Choose GBM ® Hydraulic Spreader?
Learn More About GBM Hydraulic Spreader
- Workshop Testing Video Of GBM Hydraulic Spreader
- GBM® Rotator Testing Video
- 3D Gallery
GBM ® Hydraulic Spreader Global Cases
-

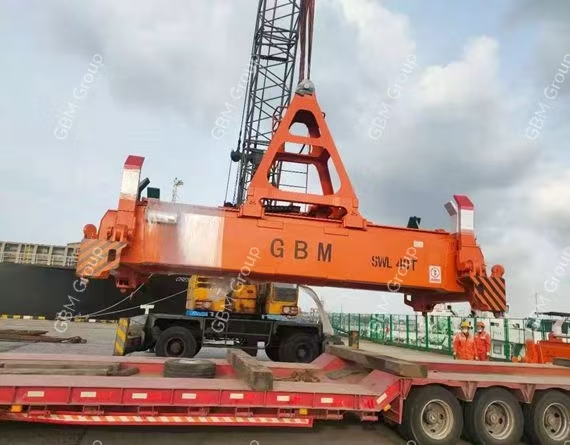

This is 40T electrical hydraulic container spreader ordered by our UAE client which is used on a vessel connected with ship’s deck crane and applied with a GBM ® rotator.
-

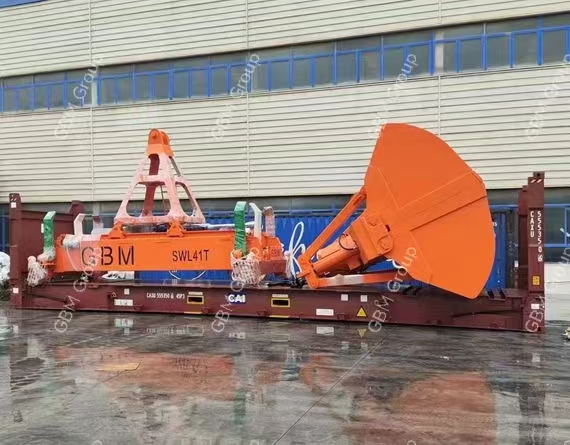

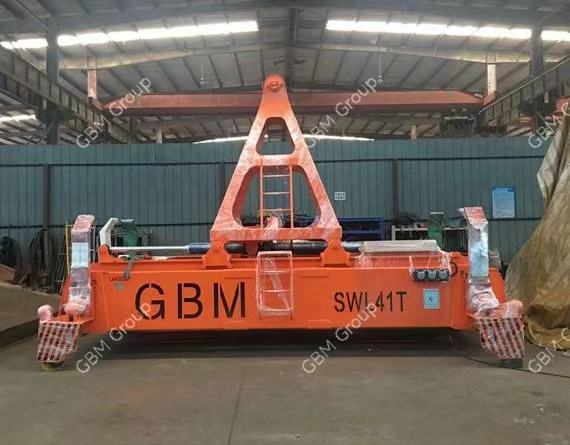

1 piece of GBM 41t electrical hydraulic container spreader and 1 piece of GBM 12cbm remote control grab for Namibia port users used on mobile harbor crane.
-

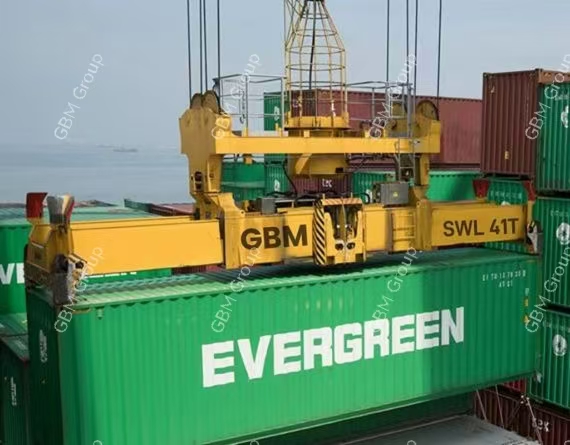

GBM electrical hydraulic container spreader with headblock used on the STS crane in container terminal.
